How to Fix a Screen Door: Step-by-Step Guide

Diagnosing Screen Door Problems

A correct diagnosis will save time and money that would otherwise be lost on unnecessary repairs. Before you start repairing, diagnose the exact problem you are dealing with, as this will help you identify and implement the most effective solution.

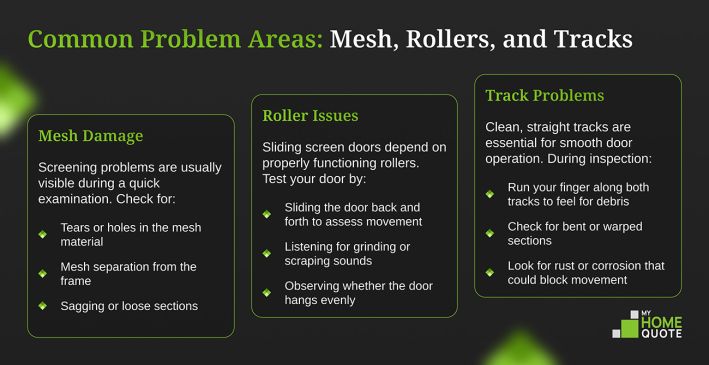

Common Problem Areas: Mesh, Rollers, and Tracks

More often than not, screen doors have multiple issues beyond just one. Issues with rollers that are out of alignment can put excessive pressure on the mesh, leading to tears over time. Repairing all problems you identify while repairing your screen door will help prevent future damage.

How to Remove a Sliding Screen Door

The safest way to remove your sliding screen door is to use specific techniques to avoid damaging either the door or its frame. Most of the time, when you want to fix something (like replace the mesh or adjust the rollers), you need to take the door off.

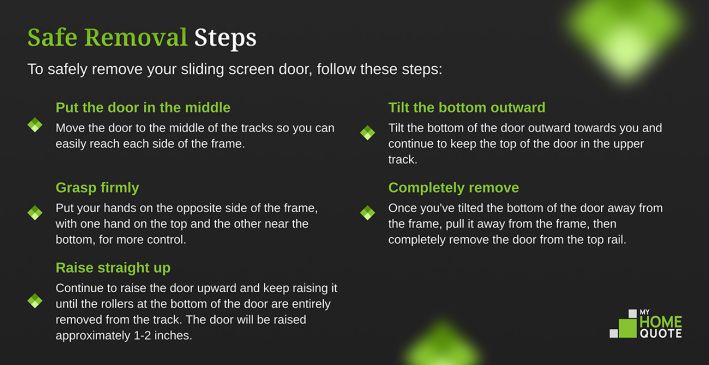

Safe Removal Steps

When Removal Is Necessary

Take off your screen door to fix the issues listed below:

• Replacing a whole mesh of screen if there are several holes or the mesh is torn from the frame
• Replace the rollers on the screen door so it moves easily, even after you clean the tracks.
• Cleaning debris from deep within the screen door tracks, rather than just cleaning the surface.
• Fixing frame issues, such as bent corners and joints that don't hold together.

You should not remove the door to perform minor mesh repairs or routine track maintenance. Most simple repairs can be done while the door is still in place, saving you time and work.

Screen Mesh Repair and Replacement

The damaged screen mesh is one of the most common repairs homeowners need to make to their screen door. Most mesh damage can be repaired in less than an hour with a few hand tools. As such, this is a good do-it-yourself project to save money by avoiding hiring a professional to fix your screen door.

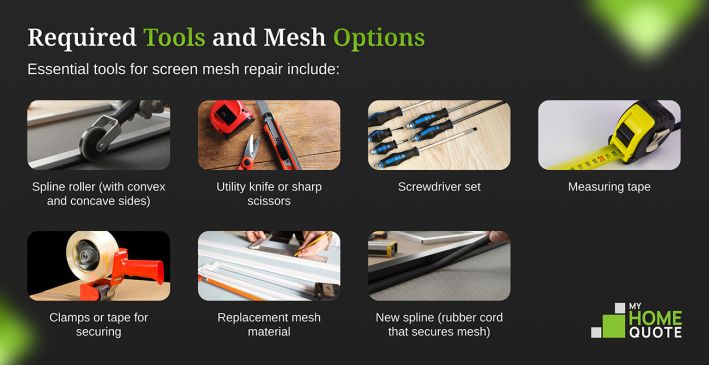

Required Tools and Mesh Options

Screen replacement kits usually include all the materials you need to repair your screen door for the first time, including a roll of mesh, a piece of spline, and a roller tool.

Choosing the right mesh material depends on your specific needs and budget:

Total material costs typically range from $25 to $50 for the complete replacement of a screen door mesh. The new spline costs between $9 and $20 per roll.

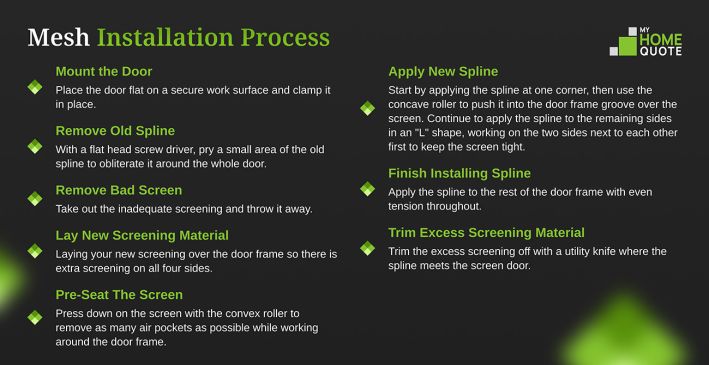

Mesh Installation Process

To replace the screen, you should follow these steps after removing the screen door from the tracks:

• Mount the Door - Place the door flat on a secure work surface and clamp it in place.
• Remove Old Spline - With a flat head screw driver, pry a small area of the old spline to obliterate it around the whole door.
• Remove Bad Screen - Take out the inadequate screening and throw it away.
• Lay New Screening Material - Laying your new screening over the door frame so there is extra screening on all four sides.
• Pre-Seat The Screen - Press down on the screen with the convex roller to remove as many air pockets as possible while working around the door frame.
• Apply New Spline - Start by applying the spline at one corner, then use the concave roller to push it into the door frame groove over the screen. Continue to apply the spline to the remaining sides in an "L" shape, working on the two sides next to each other first to keep the screen tight.
• Finish Installing Spline - Apply the spline to the rest of the door frame with even tension throughout.
• Trim Excess Screening Material - Trim the excess screening off with a utility knife where the spline meets the screen door.

Minor tears in new screens can be repaired with a patch rather than replacing the entire screen. Patches are easy to install and will save you money when repairing minor damage.

Roller and Track Repair

The primary function of a sliding screen door depends on the two essential parts that operate smoothly: the roller assembly and the rail. The roller assembly operates when the roller is in contact with the rail. The rail must be free of debris to slide properly. If the rail is dirty or damaged, you will have no way to open your slider properly, which is the most common reason for sliding door problems. If the rollers are worn out, they may not move smoothly and could also damage the door frame if they continue to wear down.

Cleaning and Lubricating Tracks

Rail cleaning and lubrication will address the most common causes of sliding door malfunctions. To maintain the rail, follow this cleaning procedure:

1. Vacuum the tracks - Use a vacuum cleaner with a soft brush or crevice tool to vacuum the rail at both the top and bottom to remove loose debris.
2. Scrub thoroughly - In a bucket, mix hot water with a small amount of mild soap. Dip a stiff brush into the solution, and clean all surfaces of the rail. Pay particular attention to the corners of the rail where dirt tends to accumulate.
3. Rinse and dry completely - After you finish cleaning the rail, use a clean towel to wipe it down. Be certain the rail is completely dry before applying lubricant.

If you have tough grime buildup, make a cleaning paste by mixing equal amounts of baking soda and vinegar. Apply the paste to the rail where the grime buildup is, allow it to fizz for a couple of minutes, then scrub the area again.

After you have cleaned the rail, apply a silicone-based lubricant. Oil-based lubricants attract more dirt and dust to the rail, requiring more frequent cleaning. After applying the lubricant, open and close the door a few times to coat the rail evenly.

Replacing or Adjusting Rollers

Most sliding screen doors include adjustment screws at the bottom that control roller height. Locate these screws (one at each end) and adjust as needed:

• To raise the door: Turn adjustment screws clockwise
• To lower the door: Turn adjustment screws counterclockwise

Start by lowering both rollers completely until the door rests on the track. Raise one roller until it lifts the door about ¼ inch off the track. Adjust the second roller until there's an even gap between the door and track.

When rollers are damaged beyond adjustment, replacement becomes necessary:

1. Remove the door from the track
2. Locate the roller assemblies at the corners
3. Use a screwdriver to spread open the tabs that hold the roller
4. Install new rollers by inserting them into the corner braces

Quality replacement rollers with heat-treated bearing steel can withstand up to 100,000 cycles of operation.

Installing or Reattaching the Screen Door

Properly reinstalling your screen door will allow it to run smoothly and prevent you from having to repair it again. Proper alignment and adjustment during the installation are required for the door to slide easily.

Correct Alignment and Tension

First, insert the top wheel of the screen door into the top channel of the track. Place the screen door in the opening so the top edge fits into the top channel. Position the screen door at a slight angle. Then, use a flathead screwdriver or a putty knife to lift the bottom wheels over the bottom channel of the track. If the wheels are stuck down, use a Phillips-head screwdriver to loosen the set screws and raise the wheels.

The two adjustment screws at the bottom of the door (one on each side) control how far the door is placed into the track. The adjustment screws have individual roller components that can be adjusted to put the door in different positions.

Start by fully opening the door and turning both of the "adjustment screws" counterclockwise to allow the door to rest entirely on the tracks. Lift one roller by turning the screw clockwise so the door lifts approximately 1/4 inch off the tracks. Continue adjusting the other roller to achieve a uniform gap between the rollers and the door.

Testing Door Slide and Closure

Slide the door open and close at least a few times to test whether it moves smoothly and evenly, with no areas of restriction or sticking points.

In addition to testing how well the door slides, test whether it closes against the frame securely, with no gaps. If the door does not fit correctly over the strike plate (the metal faceplate that contacts the latch of the door), then readjust the screws that control the tension of the door as necessary.

When to Replace the Entire Screen Door

At times, repair attempts will fail to fully restore a badly damaged screen door to good working order. Knowing whether to replace a damaged screen door is also crucial for saving you both money and time.

Cost vs. Effort Comparison

Typically, screen door repairs can cost anywhere from $7 to $150 for the parts themselves, and the total price to replace the entire door varies but is generally between $100 and $1550, averaging around $300. These are two key points to consider when deciding on which way to go.

It is time to replace your screen doors if there are numerous areas of your frame damaged (holes, dents, etc.), rust/corrosion has created gaps by warping the frame/or your doors no longer shut tightly, and your locks/handles have been compromised as well.

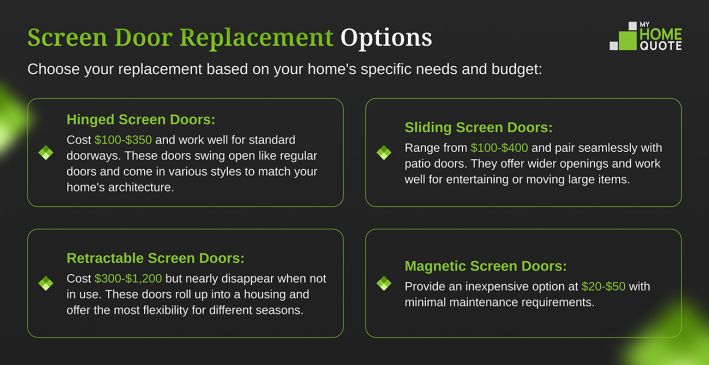

Screen Door Replacement Options

How to Choose the Right Screen Door Repair Approach

A practical approach should be taken to the upkeep of your screen door. This is because screen door maintenance can balance the cost of the repair, the time spent on it, and the repair's benefit over time. Typically, a homeowner has the skills to perform the most common repairs, such as replacing mesh, adjusting rollers, and cleaning the tracks, using general-purpose household tools. Repairing the screen door is often an inexpensive process that costs anywhere from $7 to $150, depending on the materials used, making it a worthwhile investment.

When deciding whether to repair or replace your screen door, consider its overall condition. When the screen door frame is badly damaged, rusty, or warped so the door cannot close properly, it is likely best to replace the screen door completely. Replacing the screen door can cost $100 to $1,550. However, most homeowners spend about $300 for a good-quality screen door.

In addition to determining when to repair and when to replace your screen door, regular maintenance can extend its life. Cleaning the tracks and lubricating the moving parts of your screen door every few months can help minimize operational issues. Repairing small tears in the mesh of your screen door right away can also help prevent significant problems from developing, including the need to replace the entire screen door.

When deciding what method of repair is best suited to your needs, take into consideration:

• The amount of money available in your budget: Generally, simple repairs are the best value for money, but if your screen door is badly damaged, it may make sense to invest in the replacement of the entire door
• The time you have to commit to the repair: The majority of repairs can be accomplished within a couple of hours using basic tools
• How well you want the screen door to operate: A high-quality repair and/or maintenance will provide you with many years of trouble-free operation of the screen door.

Your screen door plays a part in maintaining the comfort, energy efficiency, and visual appeal of your home. Regardless of whether you decide to repair or replace your screen door, proper installation and maintenance will protect your investment and provide years of reliable service.
